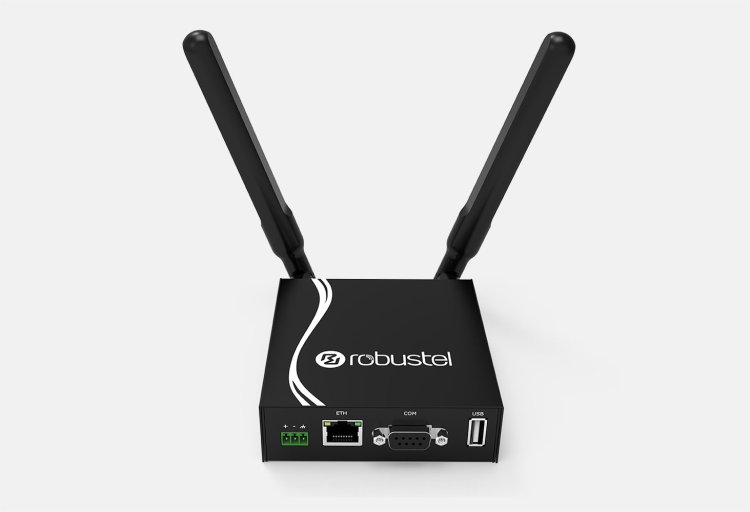

Robustel R3000 Lite Dual-SIM VPN Router Series

R3000 Lite is a cost effective, industrial-grade VPN gateway designed for cost-sensitive M2M applications.

Key Features

• Dual SIM redundancy for persistent 2G/3G/4G cellular network connections
• RobustOS + SDK + App
• IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
• Management and maintenance via Web/CLI/SMS/SNMP/RCMS
• Robust industrial design (9 to 36V DC, desktop or wall mounting or DIN rail mounting)
• 1 x 10/100 Mbps LAN port ,1 x RS-232 and 1 x RS-485
• Operating Temperature: -40°C to +70 °C

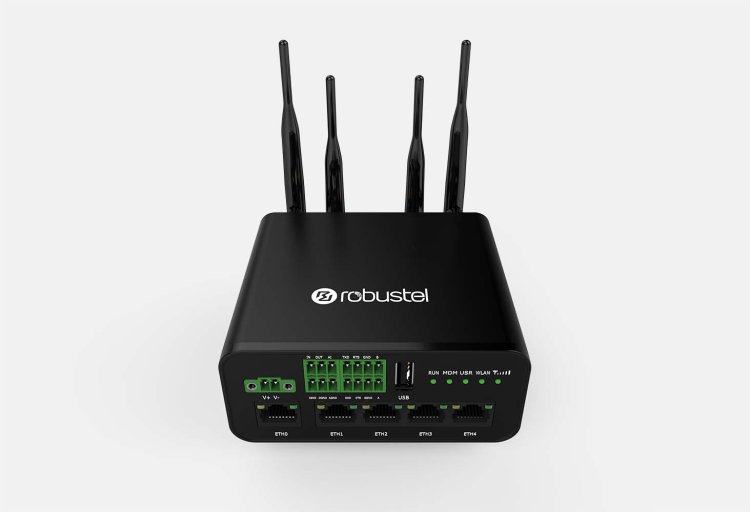

Robustel R1520 Dual-SIM Cellular VPN Router

• Dual SIM redundancy for 2G/3G/4G cellular network connections
• Rugged design with 9 to 36Vdc power
• E-mark certification for in vehicle use
• Optically isolated digital IO
• 10-bit Analogue interface for direct sensor connections
• Cellular keep-alive and fast failover
• RobustVPN – hosted service providing a “fixed IP” router
• IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN supported
• 5 x 10/100 Mbps LAN ,WAN port ,1 x RS-232 and 1 x RS-485
• 1 x DI + 1 x DO, 1AI,
• Operating Temperature: -40°C to +70 °C

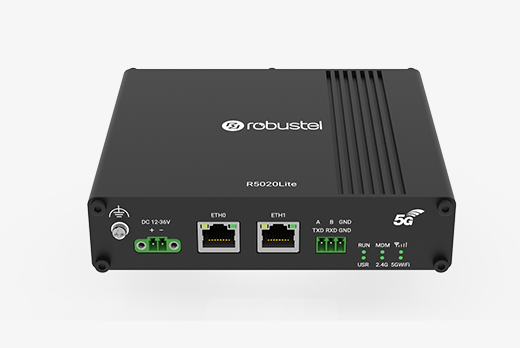

R5020 Lite 5G Router

The R5020 Lite is Robustel’s new 5G capable router supporting global 5G, 4G and 3G bands.

Key Features:

• Low cost industrial 5G Router
• Global 5G/4G/3G cellular connections
• Cutting-edge 5G 3GPP Release 16 cellular interface
• Supports Ethernet, Wi-Fi and 5G/4G internet with auto-failover
• Ethernet Interface 2 x 10/100/1000 Mbps
• 1 x RS232/RS485 (software configurable) ports

• Robust metal enclosure with small footprint – DIN-rail + wall mount options
• -25 ~ +70°C (Extended temperature)

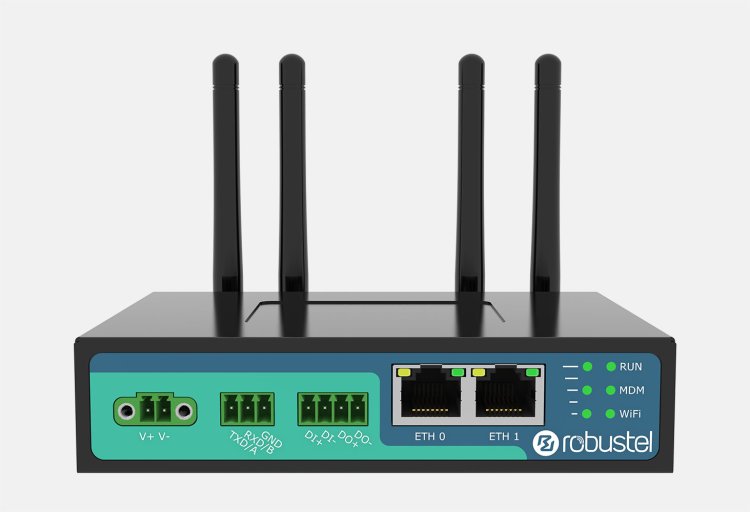

R2010 Dual-SIM VPN IoT Router

The Robustel R2010 Industrial Cellular Gateway is a rugged, versatile 4G Gateway with dual Ethernet ports, dual SIM single standby capability and a range of advanced functions for mission critical IoT or M2M applications.

• Dual-SIM redundancy for continuous cellular network connections
• Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup and ICMP detection
• WAN – Static/DHCP Client
• RobustOS + SDK + Apps
• IPsec/OpenVPN/GRE/Wireguard VPN capabilities
• Management and maintenance via Web/RCMS Cloud
• Auto reboot via SMS/time schedule
• Robust industrial design (9 to 36 V DC, desktop or wall mounting or DIN rail mounting)
• Robust industrial design (9 to 36 V DC, desktop or wall mounting or DIN rail mounting)
• 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
• Operation: -25 to +75 °C

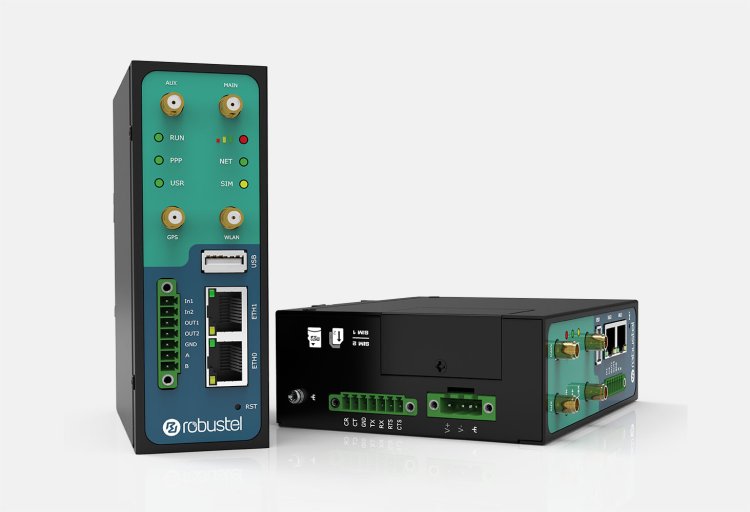

Robustel R3000 Industrial LTE Router
Dual SIM Industrial Cellular VPN Router.
Versatile, easy-to-deploy, rugged and reliable VPN gateway designed for harsh environment, providing seamless, secure, fast wireless connectivity to M2M/IoT applications.

• Support for WWAN1, WWAN2, Ethernet WAN, WLAN WAN link backup and ICMP detection via our Link Manager
• The option Backup Mode to support cold, warm and load balancing
• Supports IPv6
• RobustOS + SDK + App
• IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
• Management and maintenance via Web/CLI/SNMP/RCMS
• Robust industrial design (9 to 60V DC, desktop or wall mounting or DIN rail mounting)
•  2 x DI (dry contact) + 2 x DO (wet contact),
  4 x DI, 4 x DO, 3 x DI + 1 x DO or 3 x DO + 1 x DI
• 2 x 10/100 Mbps, 2 LANs or 1 LAN + 1 WAN
  Operation: -40 to +75 °C

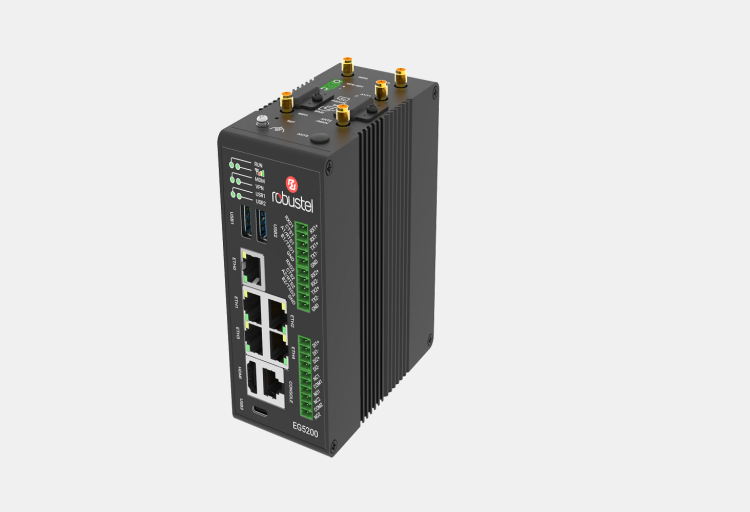

EG5200 Industrial Edge Computing Gateway

Robustel’s EG5200 is a new generation of industrial edge computing gateway supporting global 4G/3G/2G networks for cellular backhaul, with a fully-fledged Debian 11(bullseye) based.

Key Features

• Highly stable 4G/3G/2G cellular connectivity with global band coverage
• High performance compute engine with 1.6 GHz CPU +32 GB eMMC Flash for running  complex applications

• Docker’ containerization supported
• 5 x 1000Mbps Ethernet ports
• 2 x USB3.0 Type A, 1 x USB2.0 Type C, 1 x HDMI
• 1 x Console serial in RJ45 socket for debugging
• 802.11ax Wi-Fi (optional) supporting AP and Client modes
• Bluetooth (optional), Bluetooth 5.2 compliant
• 2 x RS232/RS422/RS485 (software configurable) ports for connection to industrial/legacy devices
• 2 x DI & 2 x Relay Output for simple monitoring and control
• Dual SlM card slots for redundant communications

• Operating temperature -30~+70℃

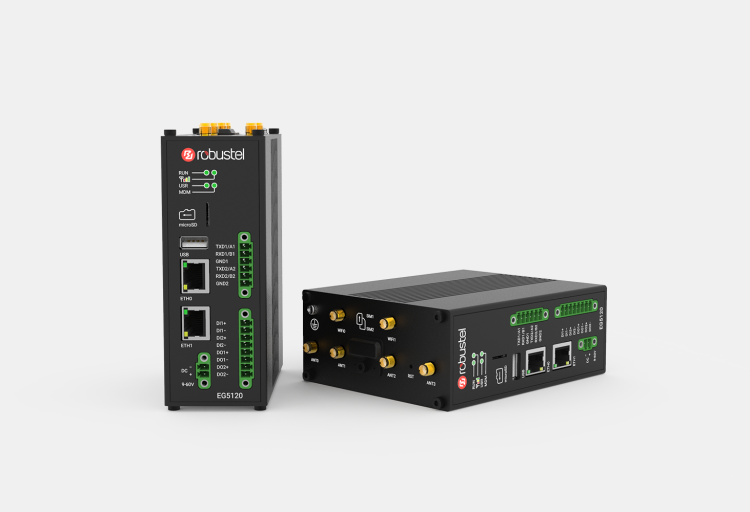

EG5120 Industrial Edge Computing Gateway

Robustel’s EG5120 is a new generation of industrial edge computing gateway, supporting global 5G/4G/3G/2G networks for cellular backhaul, with a fully-fledged Debian 11 (bullseye) based operating system able to support thousands of existing or new ARMv8 (Raspberry Pi compatible) based applications.

Key Features

• Highly stable 5G/4G/3G/2G cellular connectivity with global band coverage
• High performance compute engine with 1.6 GHz CPU + 16 GB eMMC Flash for running complex applications
• ‘Docker’ containerisation supported
• Cutting-edge (Release 16) 5G interface
• Microsoft Azure loT and AWS loT Greengrass qualifed
• 802.11ac Wi-Fi (optional) supporting AP and Client modes

• 2 x RS232/RS485 (software configurable) ports for connection to industrial/legacy devices
• 2 x DI & 2 x DO for simple monitoring and control
• Dual SIM card slots for redundant communications

• Operating temperature -40 ~ +70 °C

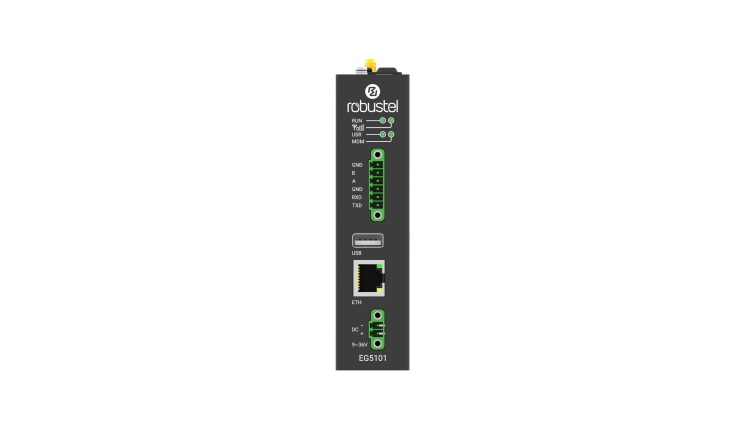

EG5101 Industrial Edge Computing Gateway

Robustel’s EG5101 is a new industrial edge computing gateway, supporting 4G Cat 1 network for cellular backhaul, with a fully-fledged Debian 11(bullseye) based operating system able to support thousands of existing or new ARMv7 (Raspberry Pi compatible) based applications.

Key Features

• Highly stable 4G Cat 1 network connectivity
• High performance compute engine with 8 GB eMMCFlash for running complex customer applications
• Docker’containerization supported
• 1 x RS232, 1 x RS485 for connection to industrial/ legacy devices
• Dual SIM card slots for redundant communications
• Wide Operating Temperature range for industrial applications
• Supports C, C++, Java, Python, Node.js etc. for users to develop their own applications
• More than 50,000 applications from Debian repository currently available
• Wireguard/IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN+ more VPN options
• Operating temperature -20 ~ +70 °C

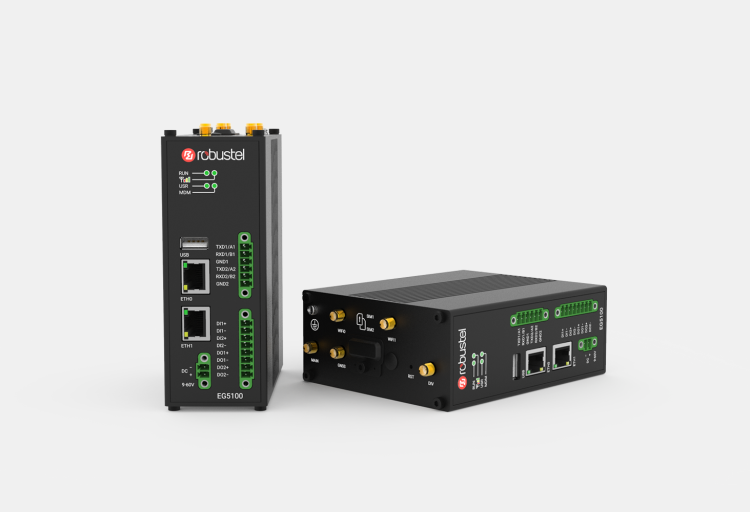

EG5100 Industrial Edge Computing Gateway

Robustel’s EG5100 is a new generation of industrial edge computing gateway, supporting global 4G/3G/2G networks for cellular backhaul, with a fully-fledged Debian 11(bullseye) based operating system able to support thousands of existing or new ARMv7 (Raspberry Pi compatible) based applications.

Key Features

• Highly stable 4G/3G/2G cellular connectivity with global band coverage.
• High performance compute engine with 8 GB eMMC Flash for running complex customer applications.
• ‘Docker’ containerisation supported.
• Microsoft Azure loT qualified.
• 802.11ac Wi-Fi (optional) supporting AP and Client modes.
• Bluetooth (optional), Bluetooth 5.2 compliant.
•  x RS232/RS485 (software configurable)ports or 1 x RS232/RS485 (software configurable) +1 x CAN for connection to industrial/legacy devices.
• 2 x DI & 2 x DO for simple monitoring and control.
• Dual SIM card slots for redundant communications.

• Supports C, C++, Java, Python, Node.js etc. for users to develop their own applications.
• More than 50,000 applications from Debian repository currently available.
• Wireguard/IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN + more VPN options.

• Operating temperature -40 ~ +70 °C

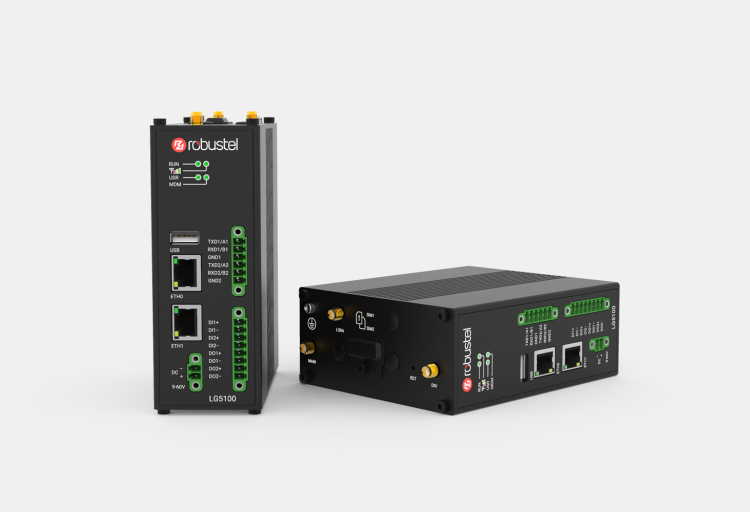

LG5100 Industrial Edge Computing LoRaWAN Gateway

Robustel’s LG5100 series is a new generation of industrial LoRaWAN gateway, supporting global 4G/3G/2G networks for cellular backhaul, with a fully-fledged Debian Operating System able to support thousands of existing or new ARMv7 (Raspberry Pi compatible) based applications.

Key Features

• Supports global LoRaWAN frequency bands
• Compatible with LoRaWAN and private protocols
• ‘Docker’ containerization supported
• Supports embedded LoRaWAN network server
• Up to 8 channels supports receive data simultaneously
• Supports Packet Forwarder Version 2.2.1 and Packet Forwarder Protocol Version 1
• Rich interfaces with 2x RS232/ RS485(software configurable), 2 x DI, 2 x DO
• Dual SIM cardredundant back-up with embedded 4G wireless communication module
• Cellular WAN, Ethernet WAN,link backup and ICMP detection
• RobustOS Pro + SDK + Apps
• Robust industrial design (9 to 60V DC input voltage, support desktop, wall mounting or rail mounting)
• Supports RCMS – Robustel’s router/gatewaymanagement platform for effective management of large estates of devices
• Operating temperature -40 ~ +70 °C
