POYNTING ANTENNAS Product

POYNTING ออกแบบและผลิตเสาอากาศแบนด์วิดท์กว้างที่มีมาตรฐานทางเทคนิคดีเยี่ยมสำหรับ 3G, 4G, 5G, LTE และ WIFI

POYNTING เป็นหนึ่งในผู้ริเริ่มผลิตภัณฑ์เสาอากาศชั้นนำระดับโลก และเป็นเจ้าของ กลุ่มสิทธิบัตรจดทะเบียน 12 กลุ่ม ซึ่งประกอบด้วยสิทธิบัตรจดทะเบียน 26 รายการ รวมถึงการออกแบบจดทะเบียน 41 รายการ ซึ่งใช้กันอย่างแพร่หลายในโซลูชันเสาอากาศเฉพาะของบริษัท

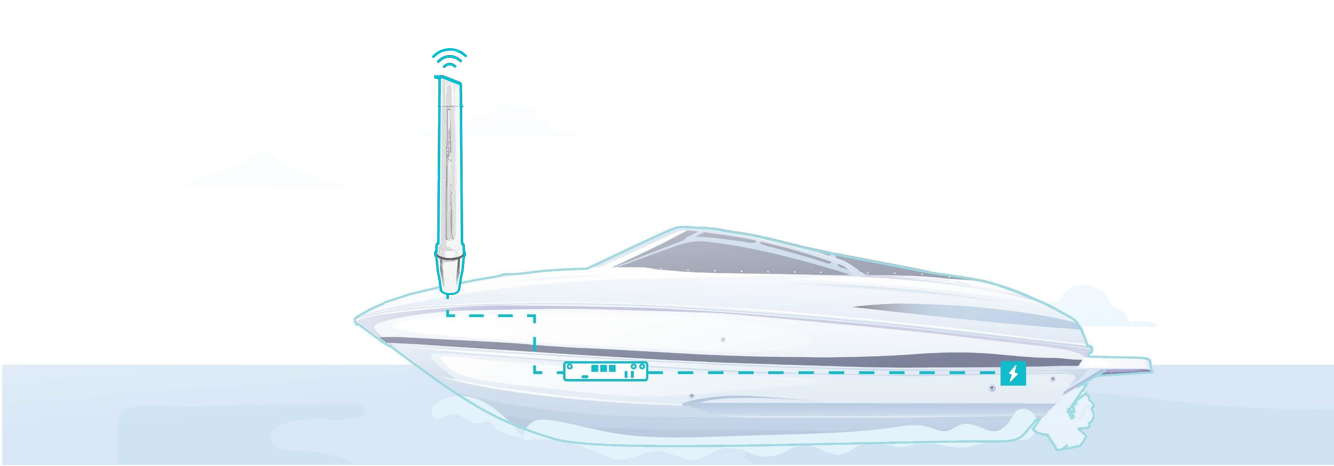

MARINE & COASTAL

POYNTING’s marine antennas are specifically designed for the harsh environments at sea, where UV, high water and salt spray protection are as important as the performance of the antenna.

OMNI-400 SERIES

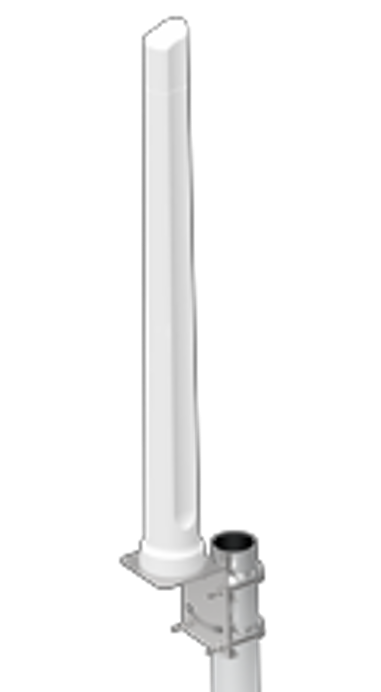

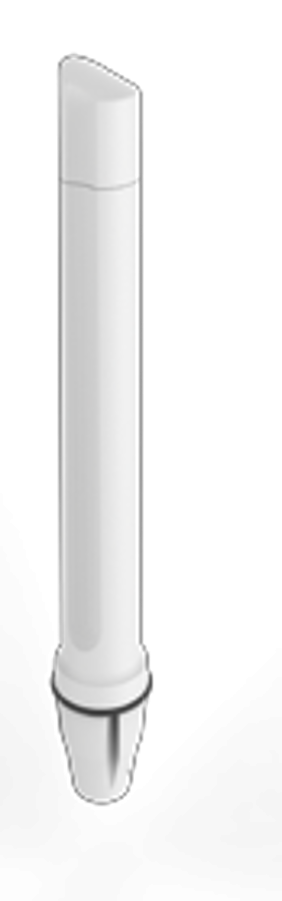

OMNI-403
OMNI-DIRECTIONAL, MARINE & COASTAL LTE ANTENNA
617 - 2700 MHz, 5 dBi
Datasheet

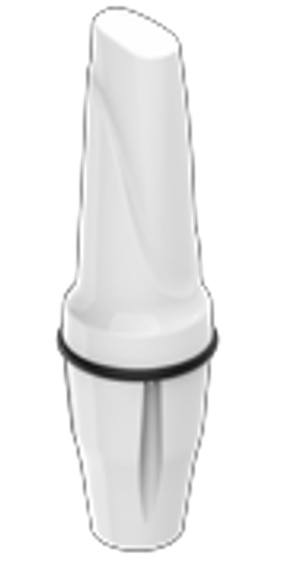

OMNI-404
OMNI-DIRECTIONAL, MARINE & COASTAL LTE/5G ANTENNA
617 -3800 MHz, 2 dBi
Datasheet

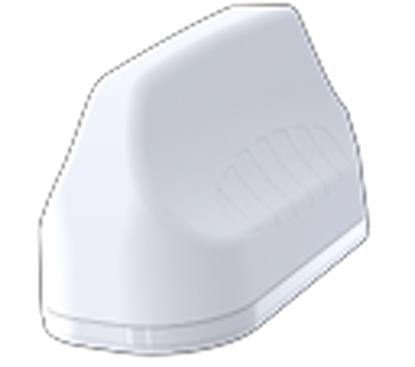

MIMO-3 SERIES

7-IN-1 TRANSPORTATION & AUTOMOTIVE ANTENNA
410 - 3800 MHz, 6.2 dBi
Datasheet

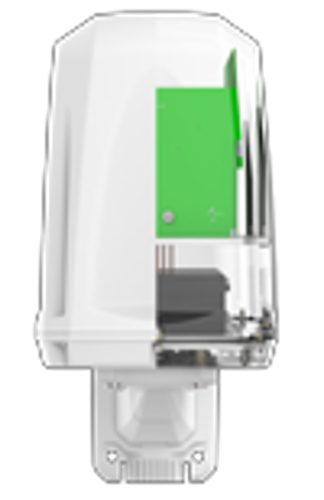

EPNT-4

X-POLARISED, OMNI-DIRECTIONAL, 5G/LTE & WI-FI CPE
617 - 4200 MHz, 3dBi, 2400 - 2500 MHz & 5000 - 7200 MHz, 5dBi
Datasheet
OMNI-400 SERIES

OMNI-402-5G
OMNI-DIRECTIONAL, MARINE & COASTAL LTE MIMO
410 - 4200 MHz, 5.8 dBi
Datasheet

OMNI-414
OMNI-DIRECTIONAL, MARINE, 4X4
MIMO 5G/LTE ANTENNA
617 -3800 MHz, 3.5 dBi
Datasheet
OMNI-291

OMNI-DIRECTIONAL, MARINE & COASTAL LTE ANTENNA
450 - 2700 MHz, 7 dBi
Datasheet
MIMO-4

OMNI-DIRECTIONAL, 5G/LTE & WI-FI  6E
617 – 6000 MHz 2.4 GHz & 5-7.2 GHz, 6dBi
Datasheet

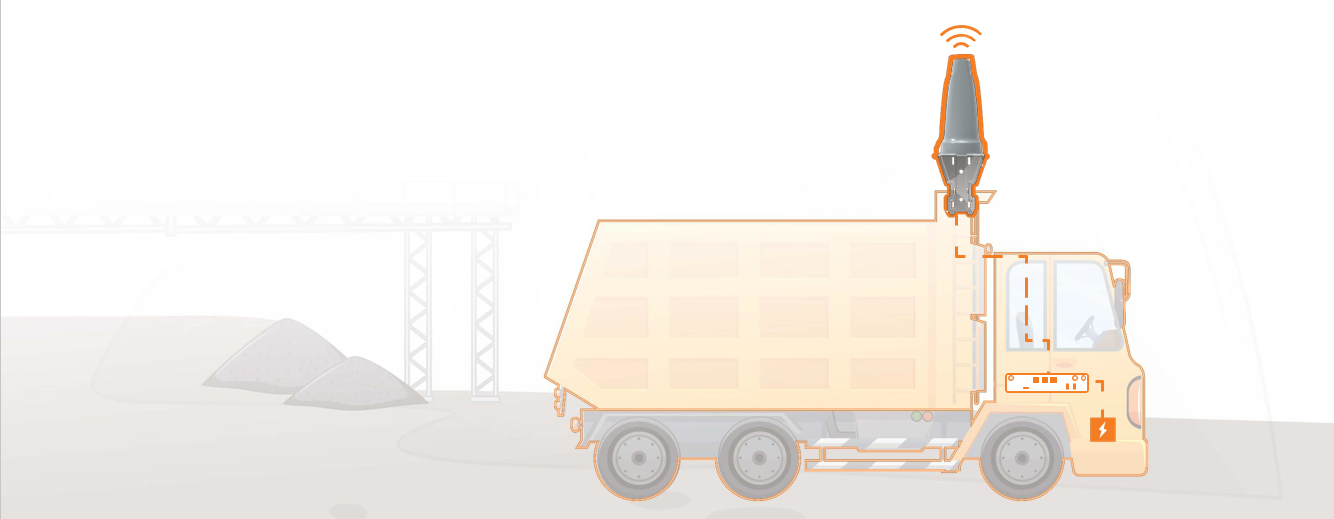

MINING & TUNNELLING

POYNTING is a leader in underground antennas; try our patented circular polarised tapered helical antennas or log- spiral circular polarised antenna technology.

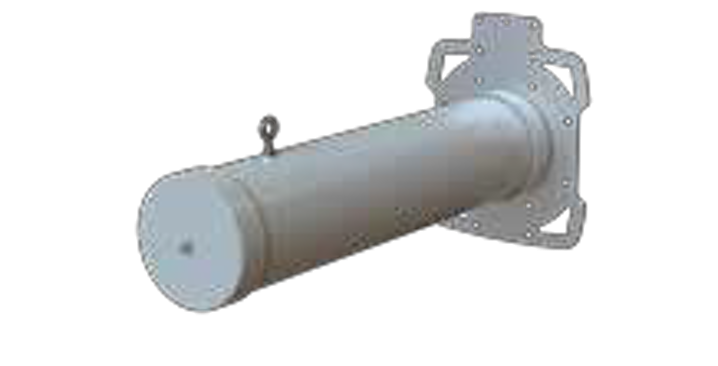

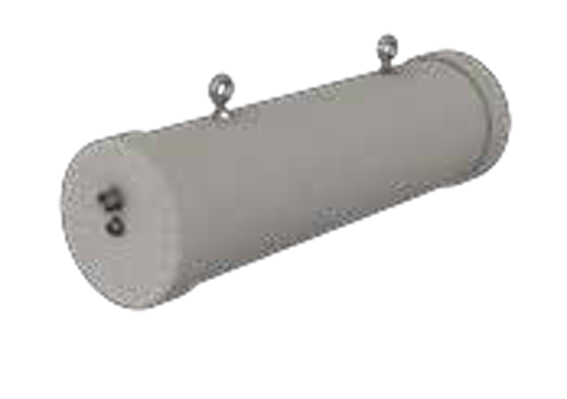

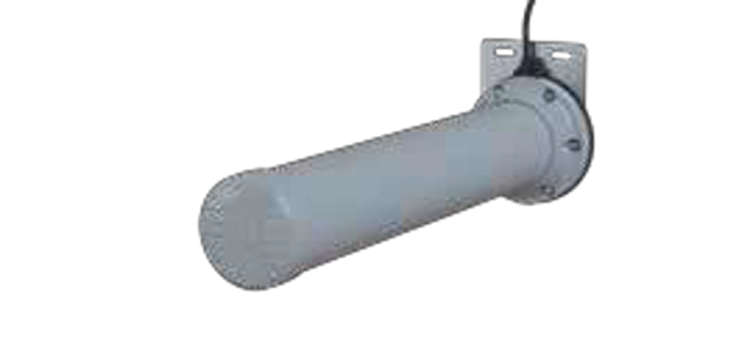

HELI-4

CIRCULAR POLARISED, DIRECTIONAL MINE/
TUNNEL ANTENNA WI-FI; 2400 - 2500 MHz,
14.5 dBi
Datasheet
HELI-31

CIRCULAR POLARISED, DIRECTIONAL MINE/
TUNNEL ANTENNA LTE /5G/ WI-FI; 1700 - 7200 MHz,
9 dBi
Datasheet
HELI-5

CIRCULAR POLARISED, DIRECTIONAL MINE/ TUNNEL ANTENNA LTE; 1710 -2170 MHz,
16 dBi
Datasheet

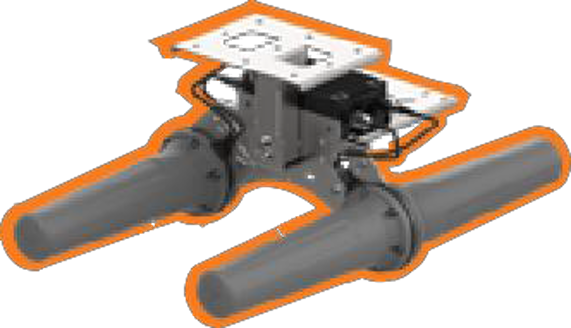

HELI-42

CIRCULAR POLARISED, BI-DIRECTIONAL   MINE/
TUNNEL WI-FI ANTENNA
2400 - 2500 MHz, 9.5 dBi
5000 - 6000 MHz, 13 dBi
Datasheet
HELI-22

CIRCULAR POLARISED, BI-DIRECTIONAL MINE/
TUNNEL ANTENNA
Dual Band Wi-Fi; 5000 - 6000 MHz,
2400 - 2500 MHz, 11 dBi
Datasheet

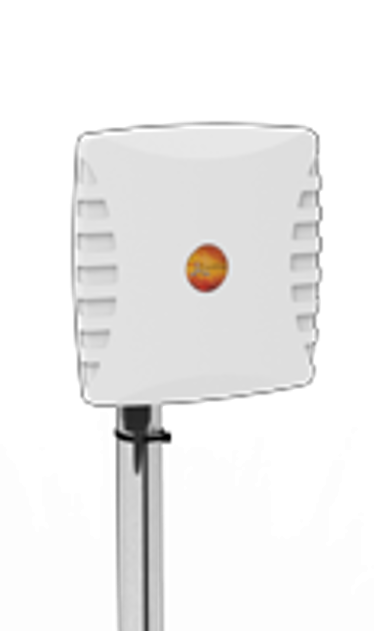

WLAN-60

UNI-DIRECTIONAL, DUAL BAND WI-FI ANTENNA
2400 - 2500, 3300 - 3800 &
5000 - 6000 MHz, 18 dBi
Datasheet

WLAN-61

UNI-DIRECTIONAL, DUAL BAND WI-FI ANTENNA
4x4 Wi-Fi (MIMO);
2400 - 2500 MHz, 9 dBi,
5000 - 6000 MHz, 11 dBi
Datasheet

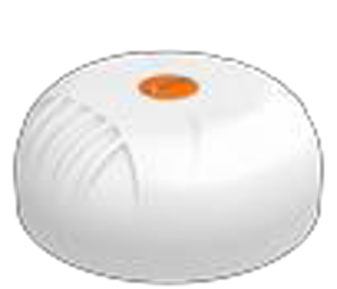

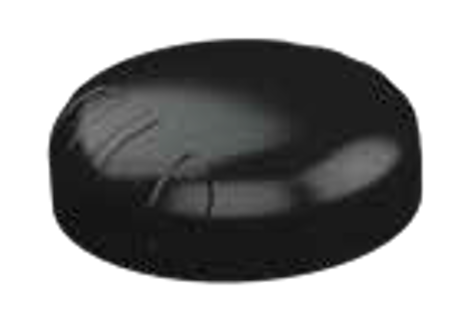

PUCK SERIES

POYNTING’S PUCK SERIES OFFERS A MALL PROFILE ANTENNA FOR USE IN A MINING & TUNNELLING
ENVIRONMENT.  MIMO LTE/5G (617 to 4200 MHz),
MIMO Wi-Fi (Dual Band 2400 MHz & 5000 - 7200 MHz)
& GPS/GLONASS.
Datasheet
OMNI-700 SERIES

OMNI-DIRECTIONAL WI-FI ANTENNA. PART OF
THE POYNTING “RHYNO” ANTENNA RANGE
AND OFFERS A SMALL PROFILE FOR USE IN THE IOT/M2M, SMART METER, SMART
UTILITIES, AND NDUSTRIAL MARKETS.
2400 - 2500 & 5000 - 6000 MHz,
4 to 8 dBi
Datasheet

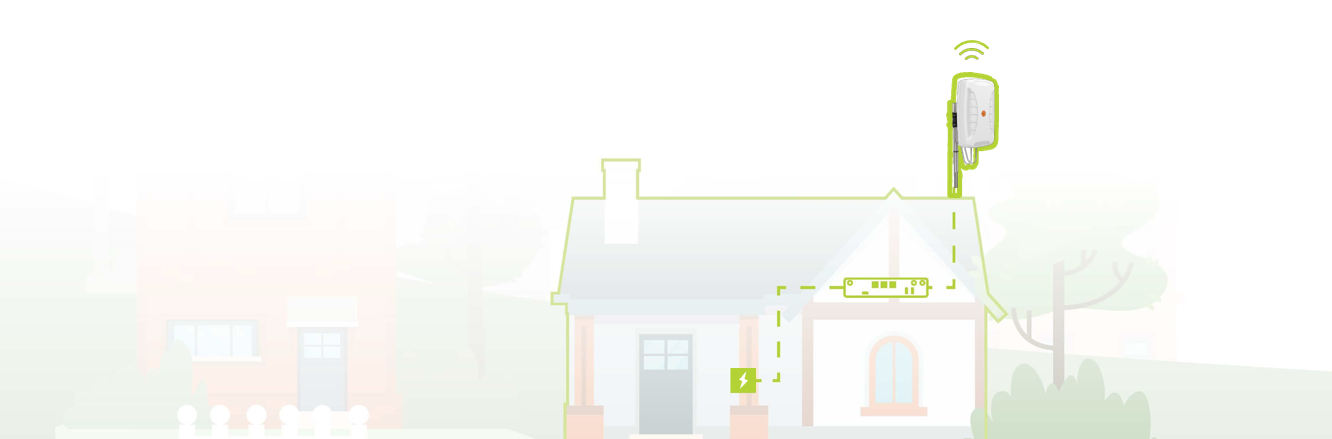

URBAN & RURAL

POYNTING’s range of high gain antennas we can improve internet access to rural areas. When using outdoor antennas individuals
and communities in the most remote areas can connect to the broadband infrastructure.

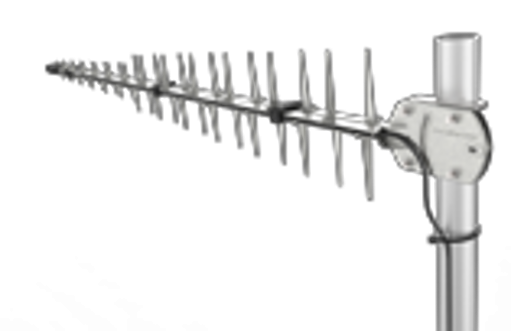

LPDA-500

ULTRA-WIDEBAND LOG-PERIODIC DIPOLE ARRAY 5G ANTENNA
617 -7200 MHz, 11 dBi
Datasheet

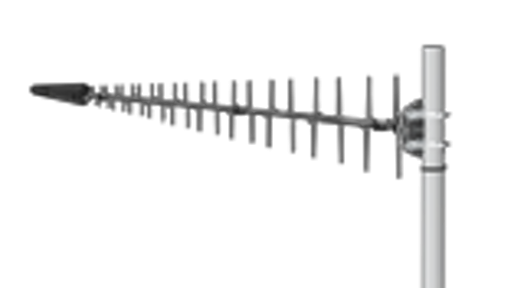

LPDA-92

WIDEBAND LOG-PERIODIC DIPOLE ARRAY
Antenna 8 -3800 MHz, 11 dBi
Datasheet

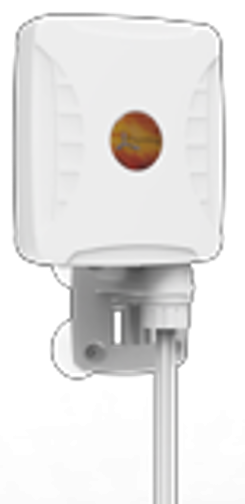

XPOL-24

X-POLARISED, UNI-DIRECTIONAL 4X4 MIMO 5G/LTE ANTENNA
617 - 960 MHz & 1710 - 4200
MHz, 11 dBi, 4x4 MIMO
Datasheet
EPNT-2

X-POLARISED, HIGH GAIN,
UNI-DIRECTIONAL 5G/LTE WI-FI CPE
698 -3800 MHz, 4x4 LTE/5G MIMO,
11 dBi 2x2 WI-FI (MIMO), 7 dBi
Datasheet
XPOL-2-5G

X-POLARISED, HIGH GAIN, UNI-DIRECTIONAL  5G/LTE
617 - 4200 MHz, 11 dBi, 2x2 MIMO
Datasheet
OMNI-293

OMNI-DIRECTIONAL, WIDEBAND  5G/LTE ANTENNA
617 - 3800 MHz, 9 dBi
Datasheet
XPOL-1-5G

X-POLARISED, OMNI-DIRECTIONAL, LTE MIMO ANTENNA
617 - 3800 MHz, 3.5 dBi, 4x4 MIMO
Datasheet

Antenna Accessories (Surge Arrester)



     Poynting Antennas proudly introduces the A-RFLA-SMSF-070 RF lightning arrester, an outdoor protective device designed to safeguard connected equipment from potential damage caused by voltage surges due to lightning strikes and induced electrical surges.


     The RFLA lightning arrester diverts the high-voltage surge away from sensitive equipment, allowing it to safely discharge to the ground. This is especially crucial for outdoor antennas, which are often mounted at the highest point in an area and thus more susceptible to lightning strikes.


     The A-RFLA-SMSF-070 lightning arrester is a bi-directional RF device that can protect against surges coming from both directions (antenna to equipment and vice versa). This ensures comprehensive protection for all connected devices.

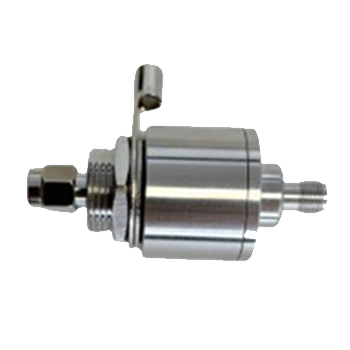

Surge Arrester: A-RFLA-SMSF-070

Key Features

Surge Protection: Shields against voltage spikes due to lightning strikes

Bi-directional Protection: especially in systems where surges come from multiple sources

Broad Frequency Range: from DC to 7 GHz making it versatile and compatible with various communication technologies such as Cellular, Wi-Fi, and Satellite systems

Low Insertion Loss: to maintain signal integrity while providing protection

High Surge Current Capacity: capable of handling high surge currents from lightning strikes

Durable Build: Robust Brass construction to withstand harsh environmental conditions ensuring long-term reliability

Easy Installation: Simple setup saves time and effort

Compliance: Meets industry standards for reliability

Datasheet
