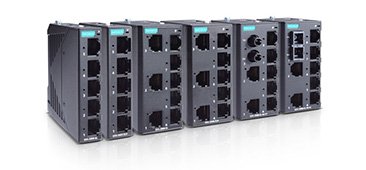

Moxa Unmanaged Switches
Moxa has over 30 years of experience in industrial automation since our founding in 1987, Moxa have 2 headquarters—the sales and marketing headquarters in Brea, California and the design & engineering headquarters in Taipei, Taiwan
Inspired by Every Connection.
Transforming your ideas into tomorrow’s innovations with our robust connectivity technology. Critical connectivity in automation is not just about having a fast connection; it is about making people's lives better and more secure.
Moxa's connectivity technology helps to make your ideas real. We develop reliable network solutions that enable devices to connect, communicate, and collaborate with systems, processes, and people.
Connectivity for Automation Networks
Keeping people and properties secure in hazardous environments by providing communication networks with maximum reliability is our mission.
Moxa มีประสบการณ์มากกว่า 30 ปี ในด้านระบบอัตโนมัติทางอุตสาหกรรมนับตั้งแต่ก่อตั้งบริษัทในปี 2530 Moxa มีสำนักงานใหญ่ 2 แห่ง—สำนักงานใหญ่ฝ่ายขายและการตลาดในเมือง Brea รัฐแคลิฟอร์เนีย และสำนักงานใหญ่ด้านการออกแบบและวิศวกรรมในกรุงไทเป ประเทศไต้หวัน
Moxa จะเปลี่ยนความคิดของคุณให้เป็นนวัตกรรมแห่งอนาคตด้วยเทคโนโลยีการเชื่อมต่อที่แข็งแกร่ง การเชื่อมต่อที่สำคัญในระบบอัตโนมัติไม่ใช่แค่การเชื่อมต่อที่รวดเร็วเท่านั้น มันเกี่ยวกับการทำให้ชีวิตของผู้คนดีขึ้นและปลอดภัยมากขึ้น เทคโนโลยีการเชื่อมต่อของ Moxa ช่วยทำให้ความคิดของคุณเป็นจริง เราพัฒนาโซลูชันเครือข่ายที่เชื่อถือได้ซึ่งช่วยให้อุปกรณ์เชื่อมต่อ สื่อสาร และทำงานร่วมกับระบบ กระบวนการ และผู้คนได้อย่างมีประสิทธิภาพ
การเชื่อมต่อสำหรับเครือข่ายอัตโนมัติ
การรักษาผู้คนและทรัพย์สินให้ปลอดภัยในสภาพแวดล้อมที่เป็นอันตรายโดยการจัดหาเครือข่ายการสื่อสารที่มีความน่าเชื่อถือสูงสุดคือภารกิจของเรา Moxa

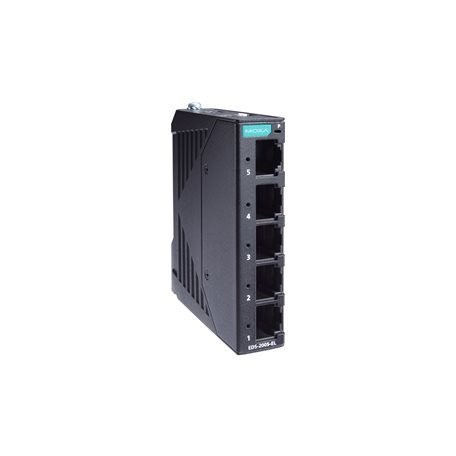

MOXA EDS-2005-EL Series
5-port entry-level unmanaged Ethernet switches with metal housing
Features and Benefits- 5x10/100BaseT(X) (RJ45 connector)
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40-rated metal housing
- -40 to 75°C wide operating temperature range (-T models)

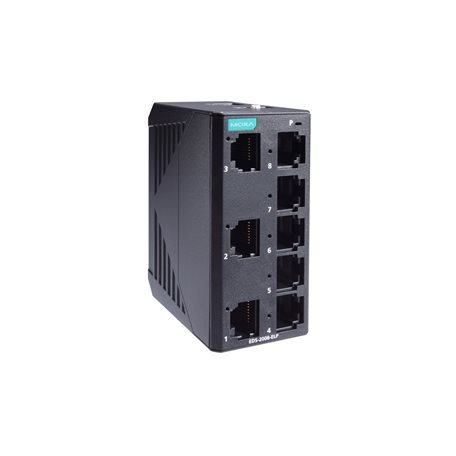

MOXA EDS-2008-ELP Series
8-port entry-level unmanaged Ethernet switches with plastic housing
Features and Benefits- 8x10/100BaseT(X) (RJ45 connector)
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40-rated plastic housing

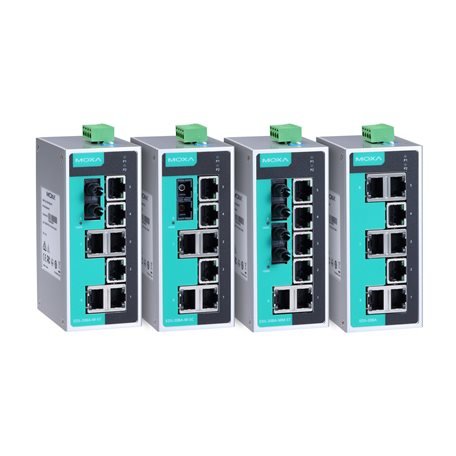

MOXA EDS-208A Series
8-port compact unmanaged Ethernet switches
Features and Benefits- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
- Redundant dual 12/24/48 VDC power inputs
- IP30 aluminum housing
- Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4/e-Mark), and maritime environments (DNV/GL/LR/ABS/NK)
- -40 to 75°C operating temperature range (-T models)

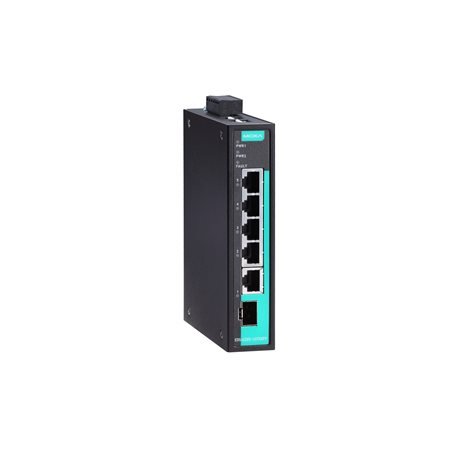

MOXA EDS-G205 Series
5G-port full Gigabit unmanaged Ethernet switches
Features and Benefits- Fiber-optic options for extending distance and improving electrical noise immunity
- Redundant dual 12/24/48 VDC power inputs
- Supports 10 KB jumbo frames
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C operating temperature range (-T models)

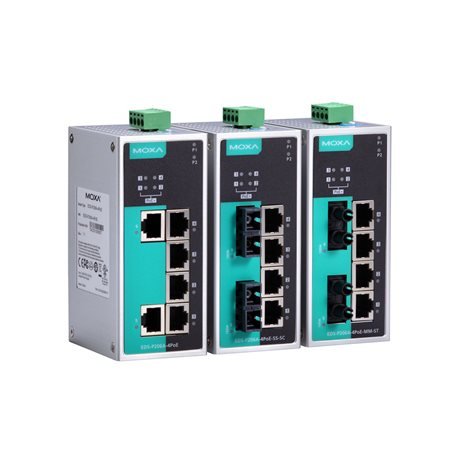

MOXA EDS-P206A Series
6-port unmanaged Ethernet switches with 4 IEEE 802.3af/at PoE+ ports
Features and Benefits- IEEE 802.3af/at compliant PoE and Ethernet combo ports
- Up to 30 W output per PoE port
- 12/24/48 VDC redundant power inputs
- Intelligent power consumption detection and classification
- Redundant dual VDC power inputs
- -40 to 75°C operating temperature range (-T models)
Moxa Managed switches

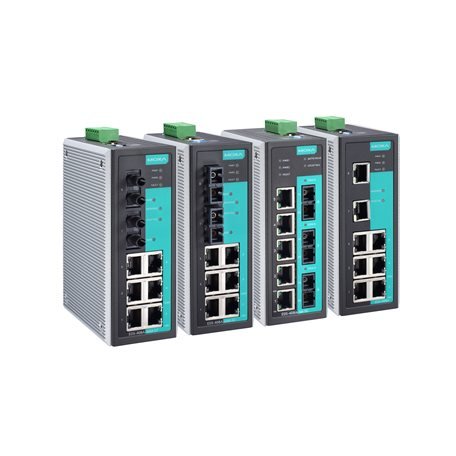

MOXA EDS-408A Series
8-port entry-level managed Ethernet switches
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
- IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- PROFINET or EtherNet/IP enabled by default (PN or EIP models)
- Supports MXstudio for easy, visualized industrial network management
Certifications: DNV-GL ,FCC,Ex,CE
Dataaheet:

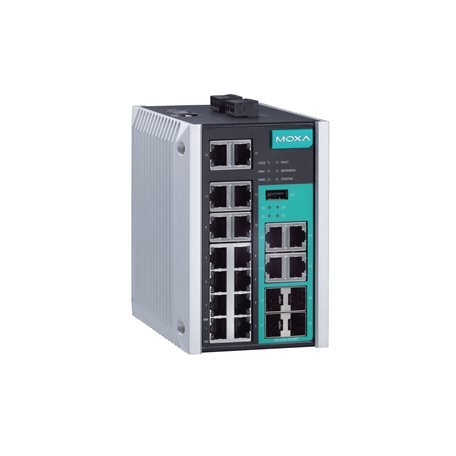

MOXA EDS-518E Series
14+4G-port Gigabit managed Ethernet switches
- 4 Gigabit plus 14 fast Ethernet ports for copper and fiber
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
- RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security
- Security features based on IEC 62443
- EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
- Fiber Check™—comprehensive fiber status monitoring and warning on MST/MSC/SSC/SFP fiber ports
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
Certificates: ATEX, Class I Division 2 , IEC 61850-3, IEEE 1613, NEMA TS2 ,CISPR 32, FCC Part 15B Class A
Datasheet: https://cdn-cms.azureedge.net/getmedia/fd55aeb4-7b7e-45d2-9cf3-5bd8d0a0a0b9/moxa-eds-518e-series-datasheet-v1.1.pdf

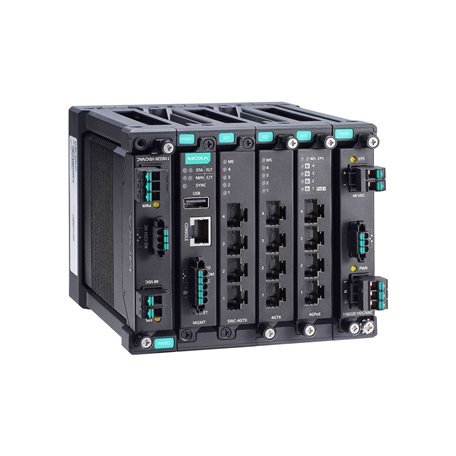

MOXA MDS-G4012-L3 Series
12G-port Layer 3 full Gigabit modular managed Ethernet switches
- Layer 3 routing interconnects multiple LAN segments
- Multiple interface type 4-port modules for greater versatility
- Tool-free design for effortlessly adding or replacing modules without shutting down the switch
- Ultra-compact size and multiple mounting options for flexible installation
- Rugged die-cast design for use in harsh environments
- Intuitive, HTML5-based web interface for a seamless experience across different platforms
Certifications: Power Substation IEEE 1613, IEC 61850-3 , Class I Division 2, ATEX, NEMA TS2,EN 62368-1, IEC 62368-1, UL 62368-1, IEC 60950-1

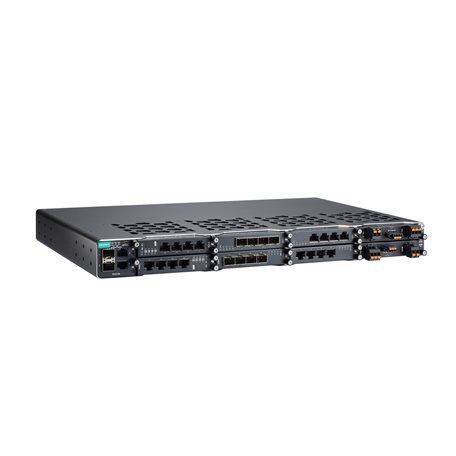

MOXA PT-G7828 Series
IEC 61850-3 28-port Layer 3 full Gigabit modular managed Ethernet switches
- IEC 61850-3 Edition 2 Class 2 compliant
- Hot-swappable interface and power modules for continuous operation
- Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
- IEEE 1588 hardware time stamp supported
Certifications;Power Substation IEC 61850 QoS, GOOSE Check , EN 50121-4, UL 62368-1, EN 62368-1

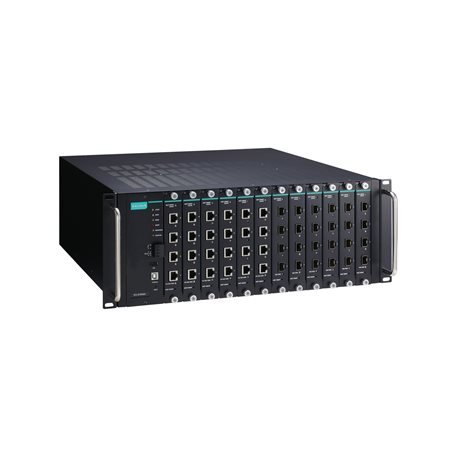

MOXA ICS-G7848A Series
48G Layer 3 full Gigabit modular managed Ethernet switches
- Up to 48 Gigabit Ethernet ports
- Up to 48 optical fiber connections (SFP slots)
- Up to 48 PoE+ ports with external power supply
- Fanless, -10 to 60°C operating temperature range
- Modular design for maximum flexibility and hassle-free future expansion
- Hot-swappable interface and power modules for continuous operation
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches)
- V-ON™ ensures millisecond-level multicast data and video network recovery
Certifications: EN 60950-1, UL 60950-1, CISPR 32, FCC Part 15B Class A,EN 50121-4
EN 50155 Switches for Railway

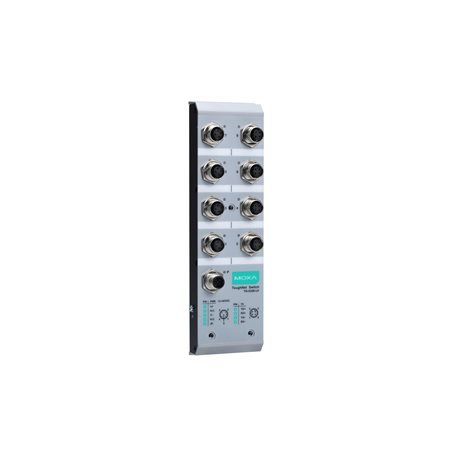

MOXA TN-5308 Series
EN 50155 8-port unmanaged Ethernet switches
- M12 connectors and IP40 metal housing
- Up to 8 IEEE 802.3af compliant PoE and Ethernet combo ports
- Supports IEEE 802.3/802.3u/802.3x
- Complies with all EN 50155 mandatory test items
- -40 to 75°C operating temperature range (-T models)
Certifications: IEC 60068-2-32 ,EN 55032/24, EN 50121-4, EN 50155
RCM, EN 45545-2 , IEC 60068-2-11, EN 50155

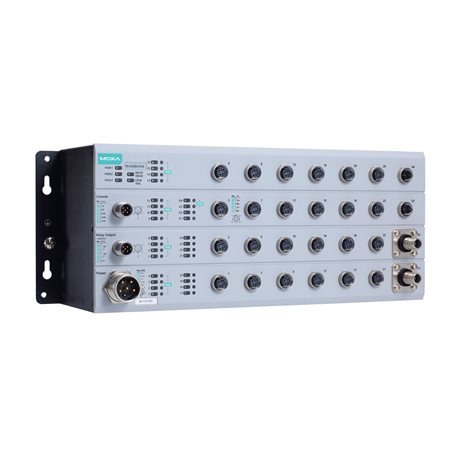

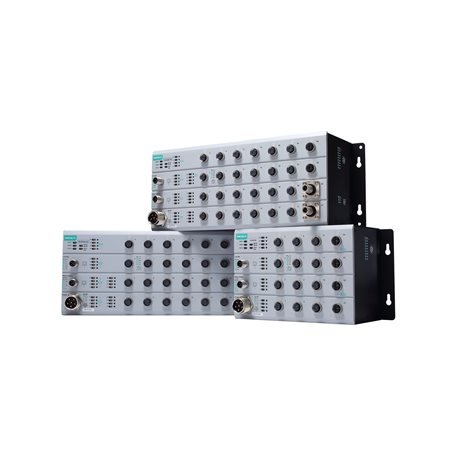

MOXA TN-4500A Series
EN 50155 12+4G/24+4G-port Gigabit Ethernet switches with up to 20 PoE ports.
- Up to 4 Gigabit ports with PoE function
- Isolated power with 24 to 110 VDC power supply range
- 2 Gigabit fiber ports with embedded multi-mode Q-ODC® interface on fiber models
- 2 Gigabit ports with bypass relay function on bypass models
- Complies with all EN 50155 mandatory test items
- -40 to 75°C operating temperature range
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches),
- Up to 20 IEEE 802.3at/af compliant combo PoE and Ethernet ports
- Provides up to 30 W per PoE port
Certifications: EN 55032/24, IEC 60068-2-31,FCC, EN 50121-4, EN 50155, IEC 60571

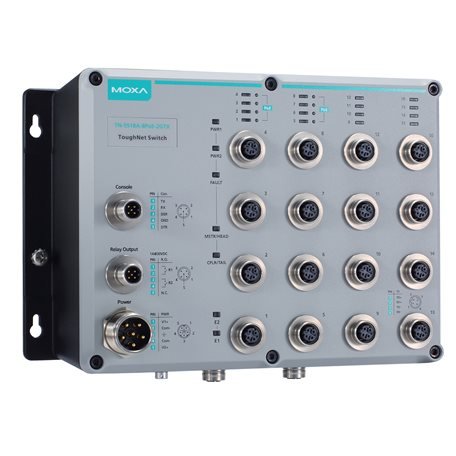

MOXA TN-5500A Series
EN 50155 8- to 18-port Ethernet switches with up to 8 PoE ports and up to 2 Gigabit Ethernet ports
- Up to 2 Gigabit ports with optional bypass relay function
- 8 IEEE 802.3at/af compliant PoE and Ethernet combo ports
- Isolated power with 24 to 110 VDC power supply range
- Complies with all EN 50155 mandatory test items
- -40 to 75°C operating temperature range
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches)
Certifications: IEC 60068-2-31, EN 50121-4, EN 50155, EN 45545-2

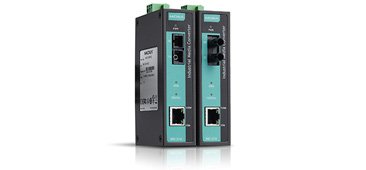

Moxa Media Converters

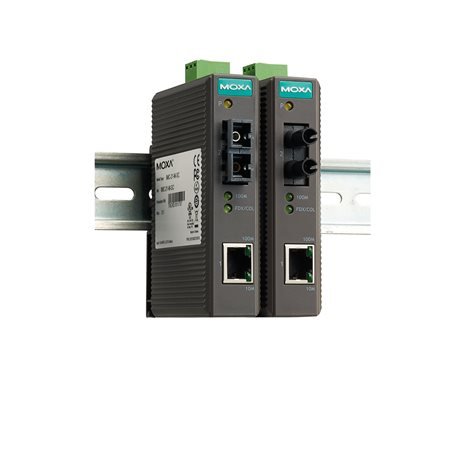

MOXA IMC-21 Series
Entry-level industrial 10/100BaseT(X)-to-100BaseFX media converters
- Multi-mode or single-mode, with SC or ST fiber connector
- Link Fault Pass-Through (LFPT)
- DIP switches to select FDX/HDX/10/100/Auto/Force
- -10 to 60°C (14 to 140°F)
Certifications : EN 55032/24 ,CISPR 32, FCC Part 15B Class A ,

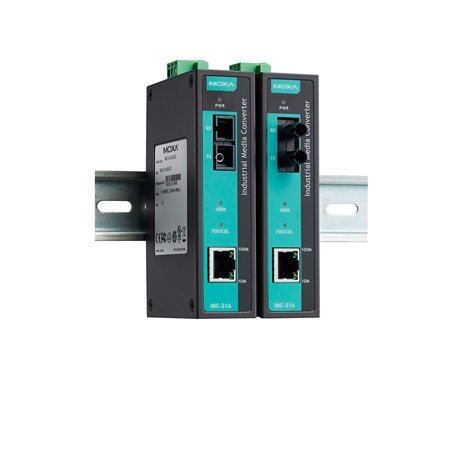

MOXA IMC-21A Series
Industrial 10/100BaseT(X)-to-100BaseFX media converters
- Features and Benefits
- Multi-mode or single-mode, with SC or ST fiber connector
- Link Fault Pass-Through (LFPT)
- -40 to 75°C operating temperature range (-T models)
- DIP switches to select FDX/HDX/10/100/Auto/Force
Certifications: CISPR 32, FCC Part 15B Class A , EN 60950-1, UL 60950-1

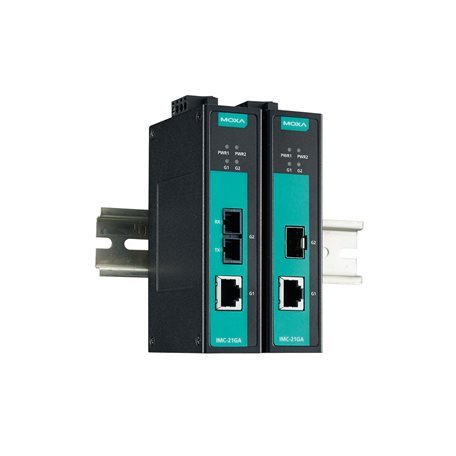

MOXA IMC-21GA Series
Entry-level Gigabit Ethernet-to-fiber media converters
- Supports 1000Base-SX/LX with SC connector or SFP slot
- Link Fault Pass-Through (LFPT)
- 10K jumbo frame
- Redundant power inputs
- -40 to 75°C operating temperature range (-T models)
- Supports Energy-Efficient Ethernet (IEEE 802.3az)
Certifications: CISPR 32, FCC Part 15B Class A, EN 60950-1, UL 60950-1

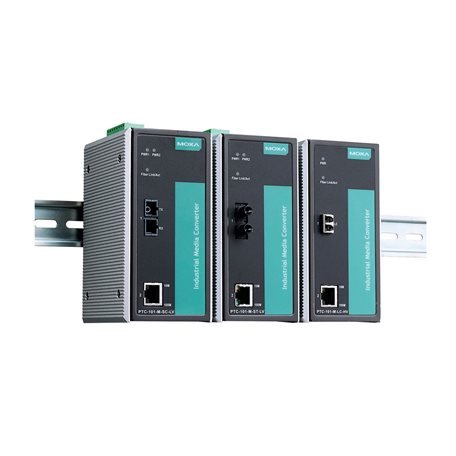

MOXA PTC-101 Series
IEC 61850-3 Ethernet-to-fiber media converters
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFPT)
- Power failure alarm by relay output (LV model only)
- -40 to 85°C operating temperature range
- Redundant dual DC power inputs (LV model only)
- Integrated high-reliability power supply eliminates the need for external power transformer
Certifications: CISPR 32, FCC Part 15B Class A,IEC 61850-3

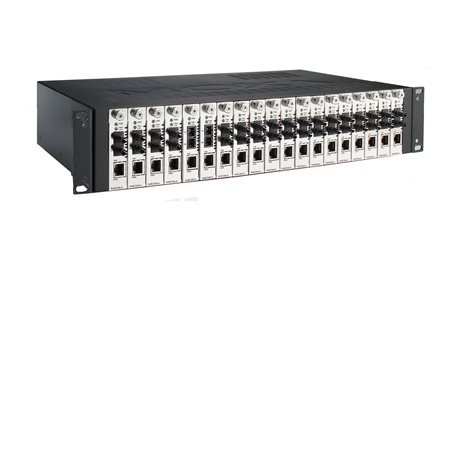

MOXA TRC-190 Series
19-inch rackmount chassis media converter
- 19-inch chassis for rackmount use
- 19 slots for high-density applications
- Supports dual power inputs with redundancy
- Fanless chassis design reduces servicing costs
Certifications: CISPR 32, FCC Part 15B Class A, EN 60950-1, IEC 60950-1
Moxa Protocol Gateways

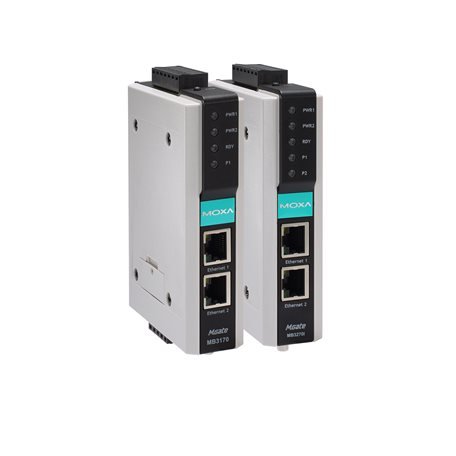

MOXA MGate MB3170/MB3270 Series
1 and 2-port advanced serial-to-Ethernet Modbus gateways
- Supports Auto Device Routing for easy configuration
- Supports route by TCP port or IP address for flexible deployment
- Connects up to 32 Modbus TCP servers
- Connects up to 31 or 62 Modbus RTU/ASCII slaves
- Accessed by up to 32 Modbus TCP clients (retains 32 Modbus requests for each Master)
- Supports Modbus serial master to Modbus serial slave communications
- Built-in Ethernet cascading for easy wiring
- 10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC/ST connector)
- Emergency request tunnels ensure QoS control
- Embedded Modbus traffic monitoring for easy troubleshooting
- Serial port with 2 kV isolation protection (for “-I” models)
- -40 to 75°C wide operating temperature models available
- Supports redundant dual DC power inputs and 1 relay output
Certifications: ATEX, Class I Division 2, IECEx, DNV-GL

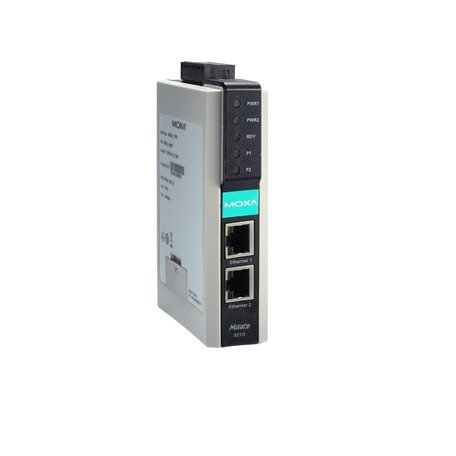

MOXA MGate 5217 Series
2-port Modbus RTU/ASCII/TCP-to-BACnet/IP gateways
- Supports Modbus RTU/ASCII/TCP master/client
- Supports BACnet/IP slave/server
- Supports 600 points and 1200 points models
- Supports COV for fast data communication
- Supports virtual nodes designed to make each Modbus device as a separate BACnet/IP device
- Configures Modbus commands quickly by editing an Excel spreadsheet
- Embedded traffic and diagnostic information for easy troubleshooting
- Built-in Ethernet cascading for easy wiring
- Industrial design with -40 to 75°C operating temperature range
- Serial port with 2 kV isolation protection
- Dual AC/DC power supply
- 5-year warranty
- Security features based on IEC 62443
Certifications:CISPR 32, FCC Part 15B Class A,
International Approval: KC

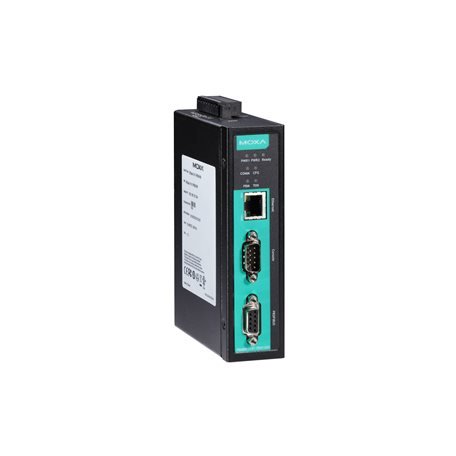

MOXA MGate 5101-PBM-MN Series
1-port PROFIBUS-to-Modbus TCP gateways
- Protocol conversion between PROFIBUS and Modbus TCP
- Supports PROFIBUS DP V1 master
- Supports Modbus TCP client/server
- Automatic scan of PROFIBUS devices and easy configuration
- Web-based GUI for I/O data visualization
- Embedded traffic monitoring/diagnostic information for easy troubleshooting
- Status monitoring and fault protection for easy maintenance
- Supports redundant dual DC power inputs and 1 relay output
- -40 to 75°C wide operating temperature models available
- Serial port with 2 kV isolation protection
- Security features based on IEC 62443
Certifications:ATEX, Class I Division 2, IECEx

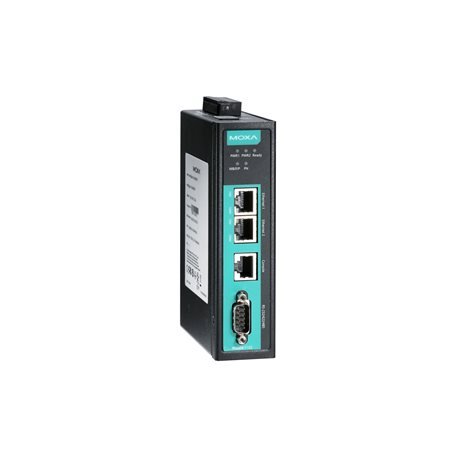

MOXA MGate 5103 Series
1-port Modbus RTU/ASCII/TCP/EtherNet/IP-to-PROFINET gateways
- Converts Modbus, or EtherNet/IP to PROFINET
- Supports PROFINET IO device
- Supports Modbus RTU/ASCII/TCP master/client and slave/server
- Supports EtherNet/IP Adapter
- Effortless configuration via web-based wizard
- Built-in Ethernet cascading for easy wiring
- Embedded traffic monitoring/diagnostic information for easy troubleshooting
- microSD card for configuration backup/duplication and event logs
- Status monitoring and fault protection for easy maintenance
- Serial port with 2 kV isolation protection
- -40 to 75°C wide operating temperature models available
- Supports redundant dual DC power inputs and 1 relay output
- Security features based on IEC 62443
Certifications: ATEX, Class I Division 2, IECEx

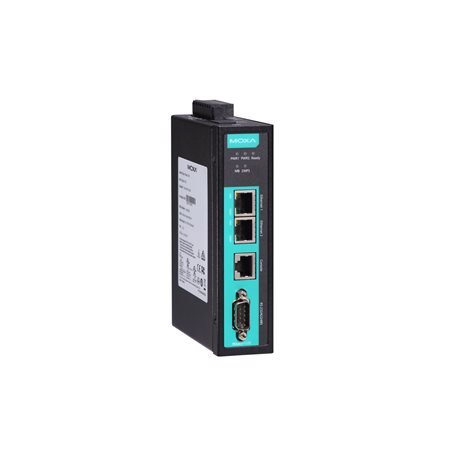

MOXA MGate 5109 Series
1-port Modbus RTU/ASCII/TCP-to-DNP3 serial/TCP/UDP gateways
- Supports Modbus RTU/ASCII/TCP master/client and slave/server
- Supports DNP3 serial/TCP/UDP master and outstation (Level 2)
- DNP3 master mode supports up to 26600 points
- Supports time-synchronization through DNP3
- Effortless configuration via web-based wizard
- Built-in Ethernet cascading for easy wiring
- Embedded traffic monitoring/diagnostic information for easy troubleshooting
- microSD card for configuration backup/duplication and event logs
- Status monitoring and fault protection for easy maintenance
- Redundant dual DC power inputs and relay output
- -40 to 75°C wide operating temperature models available
- Serial port with 2 kV isolation protection
- Security features based on IEC 62443
Certifications:ATEX, Class I Division 2, IECEx
Moxa Serial to LAN Device Servers.

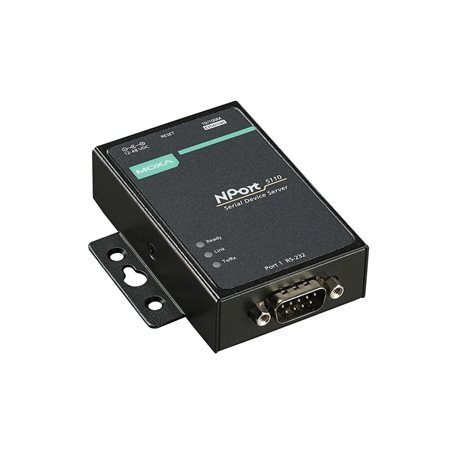

MOXA NPort 5100 Series
1-port RS-232/422/485 serial device servers.
- Small size for easy installation
- Real COM and TTY drivers for Windows, Linux, and macOS
- Standard TCP/IP interface and versatile operation modes
- Easy-to-use Windows utility for configuring multiple device servers
- SNMP MIB-II for network management
- Configure by Telnet, web browser, or Windows utility
- Adjustable pull high/low resistor for RS-485 ports
- Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

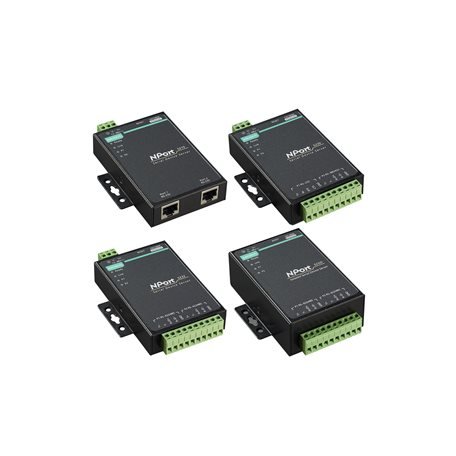

MOXA NPort 5200 Series
2-port RS-232/422/485 serial device servers.
- Compact design for easy installation
- Socket modes: TCP server, TCP client, UDP
- Easy-to-use Windows utility for configuring multiple device servers
- Patented ADDC® (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
- SNMP MIB-II for network management
- Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

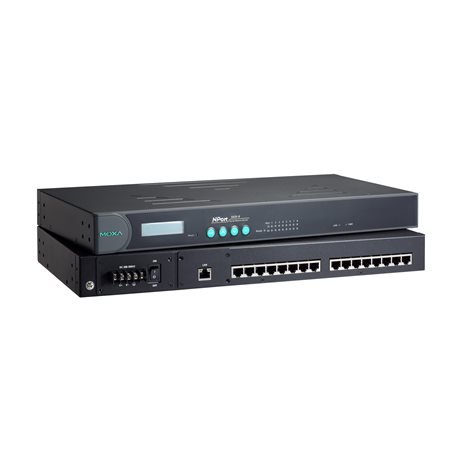

MOXA NPort 5600 Series
8 and 16-port RS-232/422/485 rackmount serial device servers.
- Standard 19-inch rackmount size
- Easy IP address configuration with LCD panel (excluding wide-temperature models)
- Configure by Telnet, web browser, or Windows utility
- Socket modes: TCP server, TCP client, UDP
- SNMP MIB-II for network management
- Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
- Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)

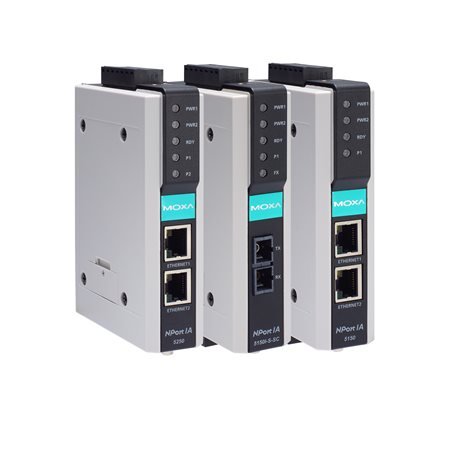

MOXA NPort IA5000 Series
1 and 2-port serial device servers for industrial automation.
- Socket modes: TCP server, TCP client, UDP
- Patented ADDC® (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
- Cascading Ethernet ports for easy wiring (applies only to RJ45 connectors)
- Redundant DC power inputs
- Warnings and alerts by relay output and email
- 10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC connector)
- IP30-rated housing Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) - Hazardous Locations: ATEX, Class I Division 2, IECEx

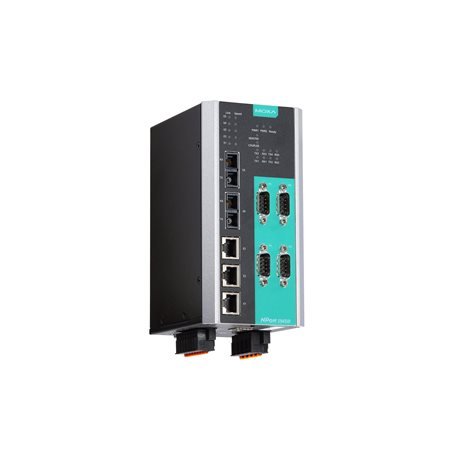

MOXA NPort S9450I Series
4-port rugged device servers with managed Ethernet switch.
- 4-port RS-232/422/485 serial interface
- Supports up to 5 managed Ethernet switch ports (fiber ports available with some models)
- Supports DNP3 and Modbus protocols
- IEC 61850-3, IEEE 1613-compliant (for power substations)
- Ethernet redundancy with Turbo Ring/Chain and RSTP/STP supported
- Real COM/TTY drivers for Windows and Linux
- Supports IEC 61850 MMS protocol
- Security features based on IEC 62443/NERC CIP
- -40 to 85°C wide operating temperature
Moxa Controllers and All products

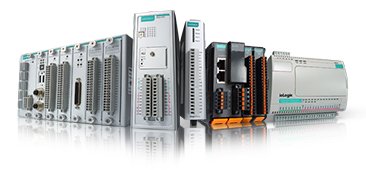

Moxa Controllers & I/Os
Moxa provides a wide range of controllers and I/O products for industrial automation applications. Our devices are built with push technology to facilitate faster I/O responses while still ensuring accurate data collection. Moxa’s Click&Go Plus simplifies configuring control logic rules, and provides support for multiple OT/IT protocols, which makes it easier for you to realize your IIoT application. Our products have been successfully deployed in factories, energy and transportation applications, and city infrastructure.

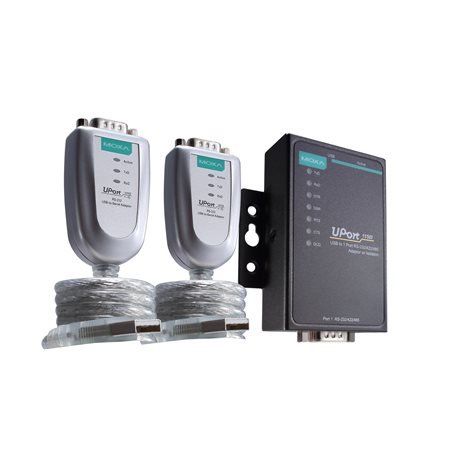

Moxa's UPort series USB-to-serial converters provide computers with high-performance, industrial-grade connections for up to 16 serial devices over a single USB port. A wide range of converters are available with features that include Hi-Speed USB 2.0 with data rates up to 480 Mbps, advanced UARTs for high-end serial performance, COM port mapping, fixed-base COM functionality, and more.

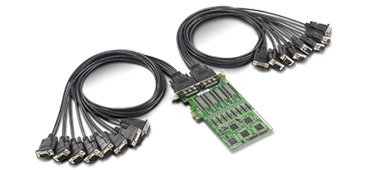

With over thirty years of experience in multiport serial board technology and development, Moxa is able to offer one of the most comprehensive selections of industrial-grade multiport serial cards on the market. We offer serial boards for a variety of slot types, from ISA to PCI Express (PCIe) to PC/104.

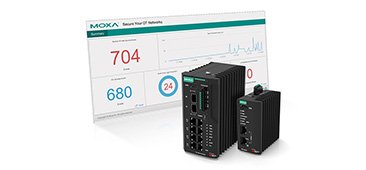

Moxa's Network Security Appliance is designed to protect your critical industrial assets from industrial cybersecurity threats with OT-IT integrated cybersecurity technologies such as OT-centric Deep Packet Inspection (DPI).
For more IPS, IDS information, visit our Industrial Cybersecurity microsite.

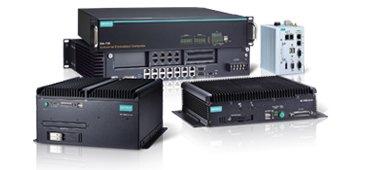

Our industrial-grade, fanless x86 computers have passed rigorous tests and strictly adhere to rigorous industrial standards to ensure they can provide long-lasting, reliable operation even in harsh environments, making them perfect for heavy industry, power substation and utilities, transportation, oil and gas, and maritime applications.

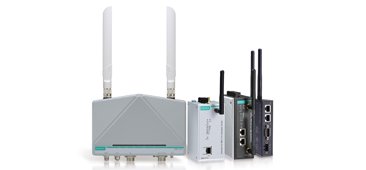

Moxa’s extensive collection of industrial-grade wireless 3-in-1 AP/bridge/client products combine a rugged casing with high-performance Wi-Fi connectivity to deliver a secure and reliable wireless network connection that will not fail, even in environments with water, dust, and vibrations.
