The Protempis GPS Time Receiver : NTP/PTP Server

NTP Time Server (หรือ ไทม์เซิร์ฟเวอร์ ) และ PTP Time server
Protempis ออกแบบโซลูชันการซิงโครไนซ์เวลา สำหรับบริษัททั่วโลก ให้เราแนะนำคุณให้รู้จักกับเทคโนโลยีการจับเวลาที่มีประสิทธิภาพสูง  Protempis มีประวัติความน่าเชื่อถือที่ไม่มีใครเทียบได้ ทำให้เราเป็นผู้นำด้านคุณค่าในอุตสาหกรรมด้านเวลา NTP Time Server  และ PTP Time server

ผู้เชี่ยวชาญด้านเวลาของเราสามารถจัดหาโซลูชัน  ที่ได้รับการพิสูจน์แล้ว เพื่อตอบสนองความต้องการของลูกค้า สำหรับความเสถียร ความถี่ หรือ ความต้องการเอาต์พุต PPS ในหลากหลายรูปแบบ

คุณสามารถมั่นใจได้ว่า Protempis จะนำเสนอ NTP Time Server  และ PTP Time server ประสิทธิภาพที่เหนือกว่าแบบดั้งเดิม นวัตกรรม คุณภาพที่พิสูจน์แล้ว และความน่าเชื่อถือได้ของ Protempis

Our timing experts can provide a custom solution—based on our proven frequency output (FreqOut™) architecture—to meet your price-point needs for virtually any stability, frequency or PPS output requirement, in a variety of form factors. Whatever form your solution takes, you can be sure it will feature Protempis’s traditional superior performance, innovation, proven quality, and reliability.

Why Choose Protempis?
Industry Expertise: Protempis technology has been at the forefront of GNSS advances for more than 40 years. We have more GNSS-related patents, products, and people than any other company. We constantly work towards optimizing our products to create higher precision clocks and ensuring that we provide a seamless customer experience to our clients through extensive research and development.


Proven Reliability: Tens of thousands of Protempis’s GPS/GNSS disciplined clocks have established an outstanding record of accuracy and reliability, with mean time between failures (MTBF) of well over 1,000,000 hours. Why risk your reputation with products that haven’t stood this test of time?


Best Overall Value – Performance & Price: Price is important. Performance is critical. Protempis timing products consistently offer the best true price to true performance ratio in the industry. Our FreqOut™ (Frequency Output) architecture produces an atomic-clock performance for less—no more expensive rubidium clocks. Our timing products come with a complete bundle of features, which means that our customers pay a one-time cost and avoid paying any additional/hidden cost for adding new features.


Customer-Centricity: At Protempis, customer trust and satisfaction come first. We build meaningful, long-term relationships with our customers. We understand the importance of minimizing downtime in your daily operations. Our technical support team works around the clock, and is available to answer all your questions and assist you whenever you need it

TS200: The Protempis Thunderbolt® NTP TS200 Time Server is designed for demanding applications that require high-accuracy NTP time stamping. It supports synchronization of thousands of workstations, routers, switches and other network elements for logging and security forensics.

The Thunderbolt NTP TS200 supports multiple GNSS constellations, utilizing GPS, GLONASS, Galileo and Beidou satellites, thereby enhancing redundancy and satellite availability.

The NTP TS200 is optimized to deliver extremely stable and accurate time of day (TOD) synchronization for a variety of time-sensitive applications, such as telecom networks, data centers, factory automation, and SCADA systems.

Key Features

  • NTP v4 Time Server
  • NTP Peering
  • Outputs: NTP, 10MHz and PPS
  • Multi-Constellation (GPS, GLONASS, Beidou and Galileo)
  • 15ns time accuracy (GPS locked)
  • IPv4 and IPv6 Support
  • Network Management: SNMP, Web UI, CLI
  • Extended Temperature range (-40°C to +85°C)


Click here to find the Datasheet

NTP_200_datasheet.pdf

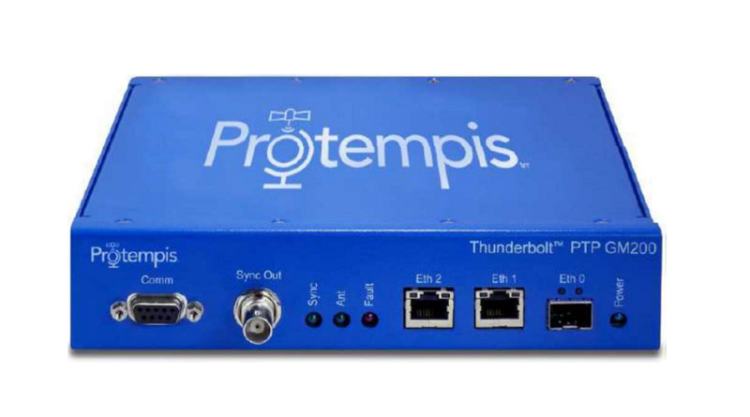

GM200:The Protempis Thunderbolt® PTP Grandmaster Clock is designed for the telecom market, for use at the edge of wireless networks requiring phase synchronization. The GM200 provides continuous availability of UTC traceable time for phase synchronization, a must for LTE-Advanced networks and services.

The Thunderbolt PTP GM200 employs industry-leading Protempis GNSS performance, and world class holdover technology.

The PTP GM200 tolerates harsh environmental conditions, supporting both indoors and outdoors deployments with an extended operating temperature range (-40 to +85 C).

Key Features
  • IEEE-1588 PTP Grandmaster ClockMultiple PTP Profiles(G.8265.1, G.8275.1, G.8275.2,Telecom-2008 Profile, SMPTE – Broadcast Profile)
  • Supports 16 PTP unicast clients @ 128pkt/s
  • Multi-Constellation (GPS, GLONASS, Beidou & Galileo)
  • ±15ns (1-sigma) time accuracy relative to GNSS reference
  • Holdover of ±1.5us over 4hours (constant temperature and when locked to GPS for 7 days)
  • Inputs: GNSS, 1588-PTP and SyncE
  • Outputs: 1588-PTP, NTP, SyncE, PPS,and 10MHz
  • Dedicated management port (1xRJ45)
  • Network Management: SNMP, Web UI, CLI
  • VLAN support
  • IPv4 and IPv6

Click here to find the datasheet.

GM200_datasheet.pdf

GNSS Antenna for Urban Environments

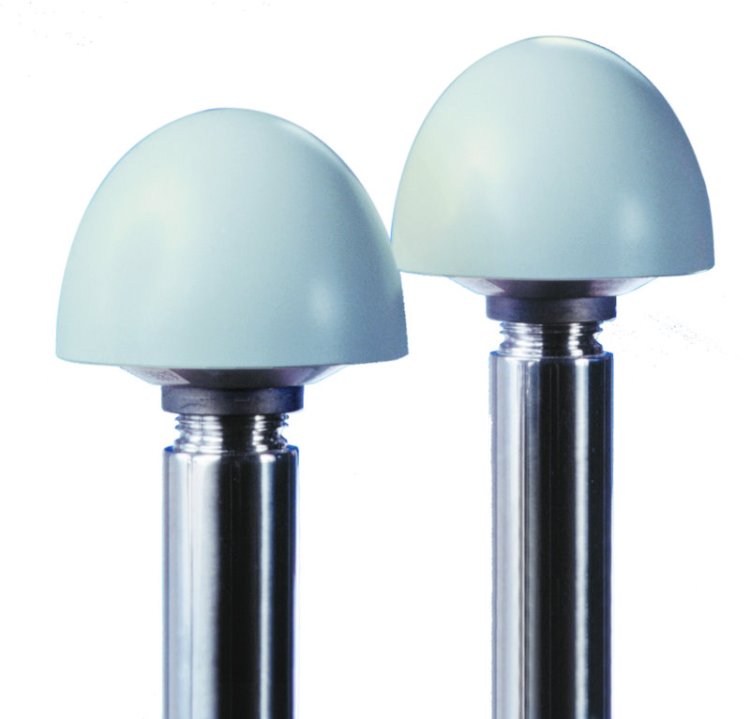

The Protempis® Bullet™ 360 timing antennas are designed specifically for the congested urban environments. In challenging urban environments the increased number of visible satellites will significantly improve the performance of GNSS receiver.

The weatherproof housing is designed to withstand continuous exposure to shock, excessive vibration, extreme temperatures, water and sunlight. For added reliability, the antenna cable can be threaded through a pole mount to keep it safe from environmental damage.

Key Features
  •  Multi-constellation – GPS, GLONASS, Galileo & Beidou
  •  Weatherproof housing
  •  Extended operating temperature
  •  Available in 3.3v (TNC) or 5v (TNC or F)
  •  RoHS II Compliant

Benefits

  •   Well suited for congested urban areas
  •   Proven extra rugged, reliable for long deployments
  •   Designed to withstand exposure to shock, vibration, extreme temperatures, rain, snow, and sunlight

Click here to find the datasheet.

bullet-360-datasheet.pdf
